Impedance Matching: Tips for Matching Headphones, Amps & Audio Gear
Read Time: Approx. 5 min.
TL;DR:
- Impedance matching in audio is about balancing the impedance of different audio components to make sure audio signals transfer efficiently and sound quality is at its best.
- Mismatched impedance can cause distortion, low volume, and uneven frequency response.
- High-impedance headphones (over 100 ohms) often benefit from dedicated headphone amps.
- Low-impedance headphones (under 100 ohms) are easily driven by most devices.
- Output impedance should ideally be 1/8th of headphone impedance.
- Balanced connections further enhance sound quality for high-impedance headphones.
- Consider portable DAC/amps for use with portable devices and earbuds.
- Experiment with different gear and prioritize high-quality audio files.
When you buy high-quality headphones, you expect great sound. However, sometimes you may find yourself disappointed with how they perform. The issue could be a mismatch in a crucial, yet often overlooked, aspect of audio setups: impedance matching.
In audio, impedance matching is important for getting the best performance from your headphones, amplifiers, and other equipment. It helps ensure a smooth flow of electrical signals, resulting in clear, powerful sound. Whether you're an audiophile or just want better sound from your gear, understanding impedance matching can make a big difference.
This guide will break down what impedance is, how it affects sound quality and equipment safety, and give you tips on getting the most out of your audio setup.
What is Impedance in Audio?
In the world of audio, impedance is basically how much an electronic circuit resists the flow of alternating current (AC) – it’s kind of like electrical "friction."
The higher the impedance, the more resistance there is to the current. Impedance is measured in ohms (Ω), and it plays a crucial role in how efficiently audio signals are transferred between different components, like your headphones and amplifier. For example, when you see "32 ohms" on your headphones, it refers to their impedance level.
Think of it like a water hose. A narrow hose (high impedance) limits water flow, while a wider hose (low impedance) allows water to flow more freely. Similarly, in an audio circuit, high impedance restricts the electrical current, while low impedance lets it move through more easily.
High-Impedance vs. Low-Impedance
High-impedance headphones generally have an impedance of over 100 ohms, meaning they need a bit more voltage to reach sufficient volume levels.
Examples include:
These headphones often sound best when paired with a dedicated headphone amp for optimal performance.
Low-impedance headphones, on the other hand, typically have an impedance of less than 100 ohms. They are easier to drive and can often be powered directly from a smartphone or laptop's headphone jack.
Popular examples include:
Headphone Impedance and Earbud Resistance
Impedance matching is all about making sure the impedance of the headphones is compatible with the output impedance of the amplifier. If they don’t match up, you might get sound quality issues.
Earbud resistance works the same way as headphone impedance, but it specifically applies to earbuds or in-ear monitors (IEMs). Most IEMs have low impedance, making them perfect for use with smartphones or digital audio players.
The Importance of Impedance Matching
You might be wondering, "Why should I care about impedance matching?" Well, it turns out that getting the right impedance pairing between your headphones and amplifier is important for several reasons:
Sound Quality
First and foremost, impedance matching significantly impacts sound quality. When there's a mismatch, you might experience a range of audio issues:
- Distortion: This happens when the amplifier struggles to deliver the right signal to the headphones, leading to muddled or unclear sound.
- Low Volume: If your headphones have high impedance and the amp isn’t strong enough, you might end up maxing out the volume and still not getting enough loudness.
- Uneven Frequency Response: Impedance mismatches can affect how different frequencies come through, causing an unbalanced sound where some frequencies are too strong or too weak.
On the flip side, proper impedance matching makes sure your headphones get the best signal from the amp, which results in:
- Clearer, more detailed sound
- Accurate frequency balance
- Better dynamic range
- Overall improved audio quality
Getting the right match between your headphones and amp helps you unlock the full potential of your setup, giving you a truly immersive listening experience.
Equipment Safety
Beyond sound quality, impedance matching also plays a role in equipment safety. Mismatches can potentially lead to:
- Overheating: If an amp has to work harder than it should, it can overheat and possibly damage its internal parts.
- Equipment Damage: In extreme cases, impedance mismatches can harm both the headphones and the amp—especially if you connect low-impedance headphones to a high-output amp.
Making sure the impedance matches helps protect your gear and keeps it running longer. That way, you can enjoy your music without worrying about damage or performance issues from impedance mismatches.
Tips for Impedance Matching
Now that you understand the importance of impedance matching, let's explore some practical tips to help you achieve the best possible audio experience:
Know Your Gear
Before you can even begin to think about matching, you need to know what you're working with. This means finding the impedance specifications for both your headphones and your amplifier (or the device driving your headphones, be it a phone, laptop, or dedicated amp).
Where to find this information
- Headphones: Check the box they came in, the user manual, or the manufacturer's website. The impedance is usually measured in ohms (Ω) and might be listed alongside other specs like frequency response and sensitivity.
- Amplifiers: Again, the user manual or manufacturer's website is your best bet. For amplifiers, you're looking for the output impedance, which indicates the impedance the amp presents to the headphones.
The Golden Rule: Lower is Often Better
A general rule of thumb in the audio world is that the output impedance should be much lower than the headphones' impedance—ideally about 1/8th or even lower. So, for example, if you have 32-ohm headphones, an amp with 4 ohms or less is a solid match.
Why is this important?
- Power Transfer: A lower output impedance from the amp allows for more efficient power transfer to the headphones. This means the amp can deliver the signal to the headphones with less resistance, resulting in better control and accuracy.
- Distortion Reduction: When the output impedance is too high, the amplifier may struggle to control the headphone's drivers, which can cause distortion, especially at higher volumes or with complex music.
Matching High-Impedance Headphones
High-impedance headphones—usually those over 100 ohms—can be more demanding to drive and need more voltage to reach a good volume and really show their potential. This is where dedicated headphone amps come in handy.
Why use a dedicated amp?
- Sufficient Power: Dedicated headphone amps are built to provide the higher voltage needed to properly drive high-impedance headphones.
- Better Sound Quality: A quality headphone amp can make a noticeable difference in sound, adding clarity, detail, and a wider dynamic range.
Balanced Connections: Taking it a Step Further
If you’re looking to get the best performance from your high-impedance headphones, consider using balanced connections. Balanced cables and amps reduce noise and interference by using two signal paths instead of one.
This leads to a cleaner, quieter background and a more transparent sound, letting all the details in your music come through.

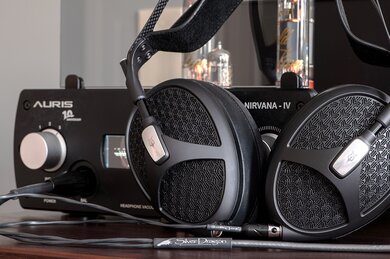

Pictured: Meze Audio Empyrean 2 Headphones, Auris Nirvana IV Headphone Amplifier, Silver Dragon Premium Headphone Cable
Matching Low-Impedance Headphones
Low-impedance headphones, usually below 100 ohms, are generally easier to drive. They can often be powered directly from a smartphone, laptop, or DAP without the need for a dedicated amplifier.
A Word of Caution
While low-impedance headphones are more versatile in their pairing options, it's still important to check the amp’s output impedance. Pairing them with an amp that has high output impedance can cause an imbalance, which might alter the headphone’s frequency response or even cause some distortion.
Portable Devices and Earbuds
These days, most of us listen to music through our smartphones and laptops, often with earbuds or IEMs. These devices are typically low-impedance and designed for portable use, but there are still ways to enhance your listening experience:
- Prioritize High-Quality Audio Files: Start with the best possible source material. Lossless audio formats like FLAC and WAV keep more of the original recording's detail compared to compressed formats like MP3.
- Consider a Portable DAC/Amp: If you're serious about sound quality, a portable DAC/amp can make a big difference. These compact devices bypass the often inferior audio circuitry in your phone or laptop, providing a cleaner, more powerful signal to your earbuds.
- Experiment with Ear Tips: Don't underestimate the impact of a good seal. Ear tips affect sound isolation and bass response. Try different sizes and materials (silicone, foam, etc.) to find the best fit for your ears and your preferred sound signature.
By following these tips and keeping impedance matching in mind, you can get the most out of your audio gear. You can enjoy a fully immersive, satisfying listening experience whether you’re relaxing at home with high-end headphones or on the go with your favorite earbuds.
Beyond the Basics
While impedance matching is key to getting the best sound quality, it’s worth remembering that it’s just one piece of the puzzle. Other factors matter too, and understanding them can take your listening experience to the next level.
Frequency Response
Frequency response refers to the range of frequencies that headphones can play accurately. A wider frequency response usually means you’ll get a more complete and detailed sound.
Sensitivity
This tells you how effectively a headphone turns an electrical signal into sound. Higher sensitivity means you’ll get louder volume without needing as much power.
Driver Technology
The type and size of drivers in your headphones play a big role in shaping the sound. Different driver types bring unique qualities, like varying levels of detail, bass strength, and soundstage depth, which all affect the overall listening experience.
Tonal Balance
This describes the overall character of the sound, whether it's warm, bright, neutral, or bass-heavy. Personal taste is a big factor here, as finding the right tonal balance means choosing headphones that match what you enjoy in your music.
Synergy and Subjectivity
At the end of the day, what sounds "best" is personal and really depends on your own preferences. Even with perfect impedance matching, the synergy between different components (headphones, amplifier, source) can create unique sound qualities that make the listening experience feel one-of-a-kind.
Experiment and Listen
The best way to discover your perfect audio setup is by trying things out and doing some listening tests. Mix and match different headphones and amps, and see how each combo works with the types of music you love. Pay attention to the details, and you'll get a feel for what setup really suits your tastes.
Optimize Your Audio Setup Today
Navigating the world of impedance matching might seem daunting at first, but with the tips from this guide, you're on the path to better sound. Remember, it’s not just about owning the top headphones or the strongest amp—it’s about finding the right balance and harmony between them for the best listening experience.
By getting a handle on impedance, ohms, and the finer details of your audio gear, you can open up a whole new world of amazing sound. Think clearer audio, richer details, and an all-around more immersive listening experience.
Think of it as fine-tuning an instrument. Just as a musician tweaks their instrument to get the best sound, you, as the audio enthusiast, can adjust your setup to create a sound experience that truly resonates.
Whether you're a dedicated audiophile or on your way to becoming one, getting impedance matching right is key to reaching great sound quality. It’s all about balancing power and resistance to make sure every note, beat, and detail comes through clearly and accurately.
