Features
50kHz Free-Field Frequency Response
140dB SPL Max Acoustic Input
Omnidirectional Polar Pattern
Ideal for SMAART™, MLSSA™, Spectrafoo™, TEF™, RTA and all “Audio Band” Measurements
Operating Temp Range: -20 deg C to +60 deg C ( -4 deg. F to 140 deg. F)
Storage Temp Range: -40 deg C to +80 deg C ( -40 deg. F to 176 deg. F)
Humidity: Up to 90%
What's in the Box?
Warranty
The Ultimate in Audio Measurement.

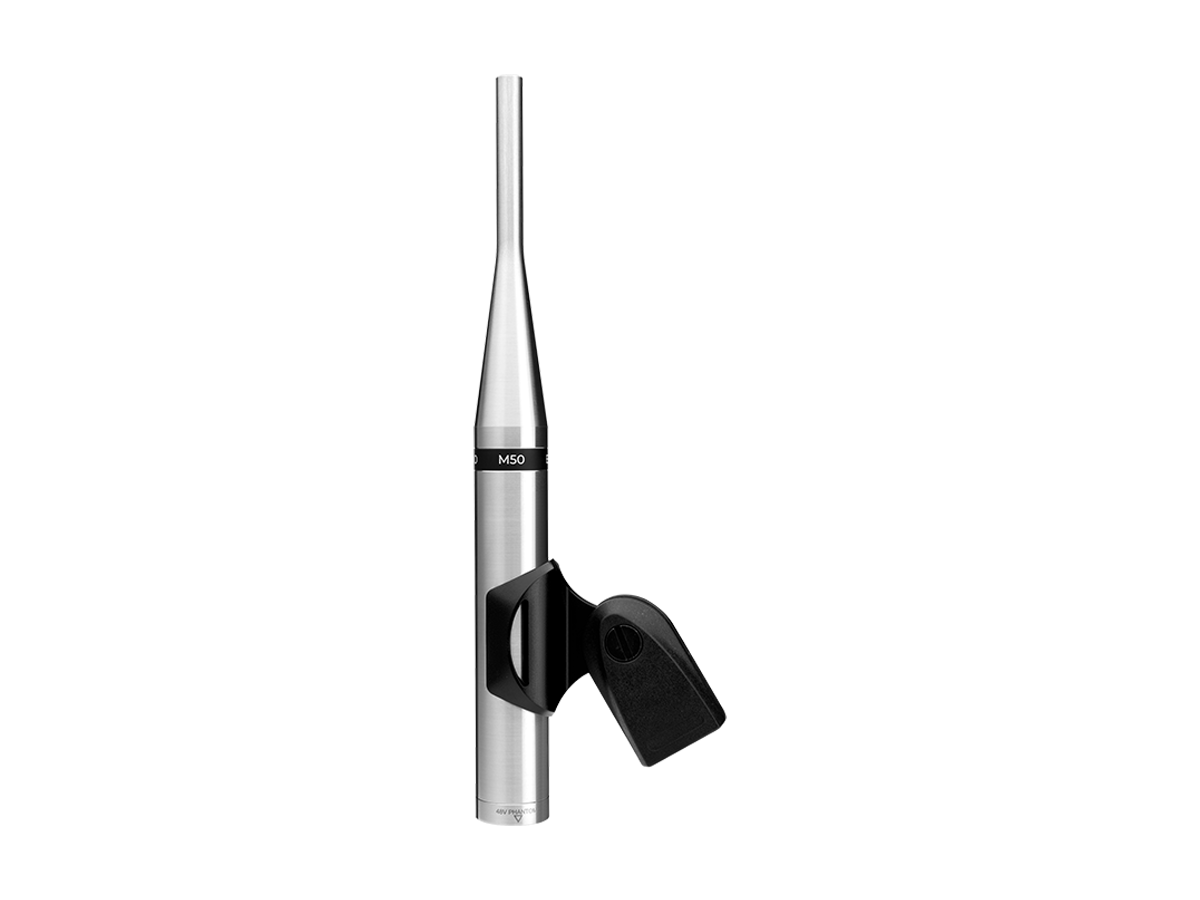

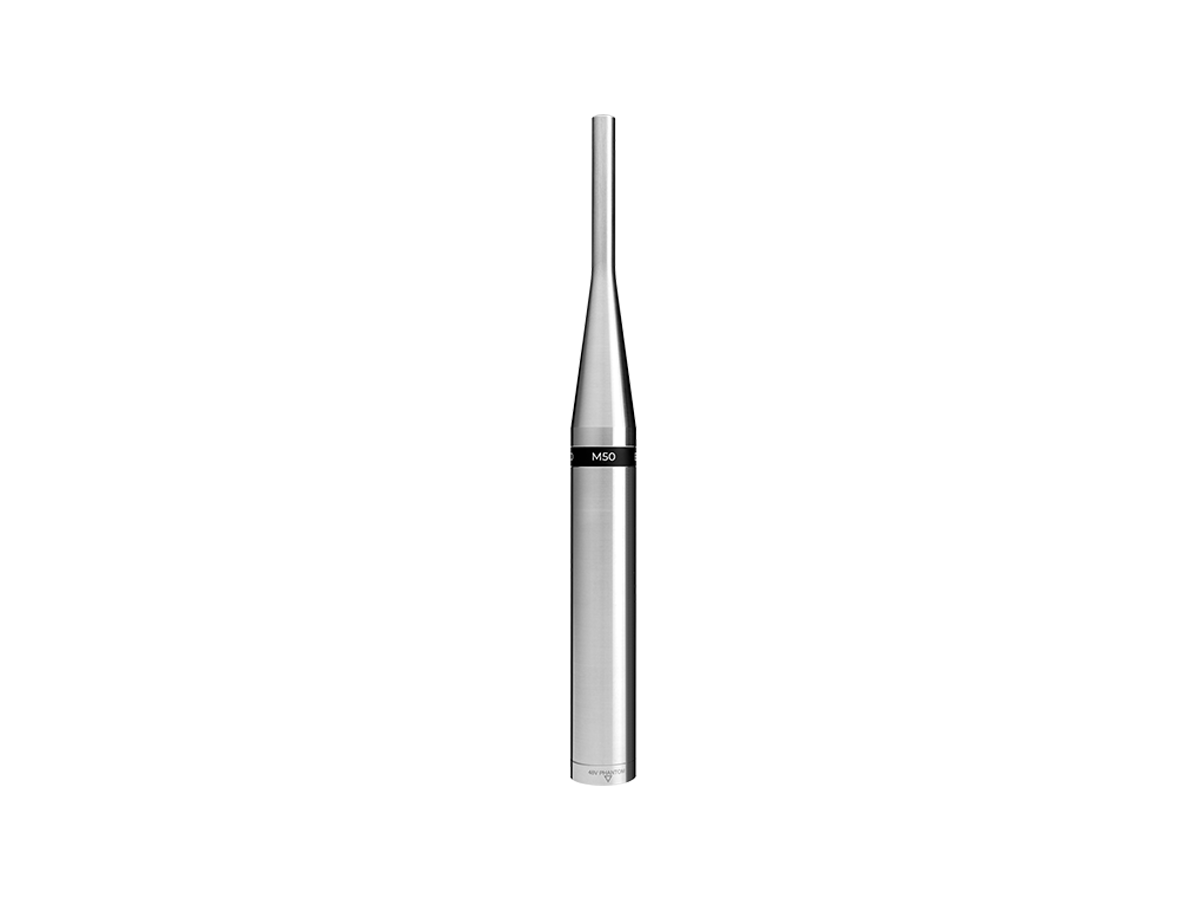

The M50 is a precision engineered 50kHz omnidirectional measurement microphone ideally suited for acoustical measurements including high-end loudspeaker design and quality control, scientific research, measurements of ultrasonic or subsonic transducers, or any application where an extremely accurate free-field measurement microphone is required.
The Pinnacle of Transparency
An ultra wide flat frequency response that extends from 3Hz to 50kHz and is flat throughout the entire spectrum. An omnidirectional polar response that is exceptionally consistent. A 140dB SPL rating without distortion and no handling noise.
Accuracy in Any Environment
With temperature-compensated electronics, the M50 was built to deliver repeatable results no matter what the environment.
Compatible With Your Favorite Measurement Software
Lightning fast impulse response and linear phase response make the M50 ideal for use with high-quality FFT-based real-time audio system measurement software like SMAART™, SIM™, REW™, Electroacoustics Toolbox™, FuzzMeasure™ and others, as well as for use in PA system alignment and loudspeaker design.
Professional products designed with professionals in mind
In audio, our perception of what feels real and natural is incredibly sensitive to resolution in the time domain. In particular, the level of detail present in the initial transient is responsible for much of our sense of content, meaning, and frequency balance. This includes defining attributes like “timbre”, “texture”, and “air”. Earthworks’ blazingly fast technology ensures that every performance sounds like life
Specifications
| FREQUENCY RESPONSE | 3Hz -50kHz |
|---|---|
| POLAR PATTERN | Omnidirectional |
| SENSITIVITY | 34mV/Pa (-29dBV/Pa) |
| POWER REQUIREMENTS | 24-48V Phantom, 10mA |
| MAX ACOUSTIC INPUT | 140dB SPL |
| OUTPUT | XLR (pin 2+) |
| OUTPUT IMPEDANCE | 65Ω balanced (between pins 2 & 3) |
| MIN OUTPUT LOAD | 600Ω between pins 2 & 3 |
| NOISE | 20dB SPL equivalent (A weighted) |
| DIMENSIONS (L x D) | 229mm x 22mm (9.0 x .860 inches) |
| WEIGHT | .5 lb. (225g) |
Specifications
- Frequency Response
- 3Hz to 50kHz ± 1/-3dB
- Polar Pattern
- Omnidirectional
- Sensitivity
- 34mV/Pa
- Power Requirements
- 24-48V Phantom, 10mA
- Max Acoustic Input
- 140dB SPL
- Output
- XLR-3 (pin 2+)
- Min Output Load
- 600Ω between pins 2 & 3
- Noise
- 20dB SPL
- Temp Operating Range
- -4˚ to 140˚F (-20˚ to +60˚C)
- Dimensions (L x D)
- 9 x .860 in. (229 x 22 mm)
- Weight
- 0.5 lb. (227g)
