Bryston
BAX-1 Digital Crossover

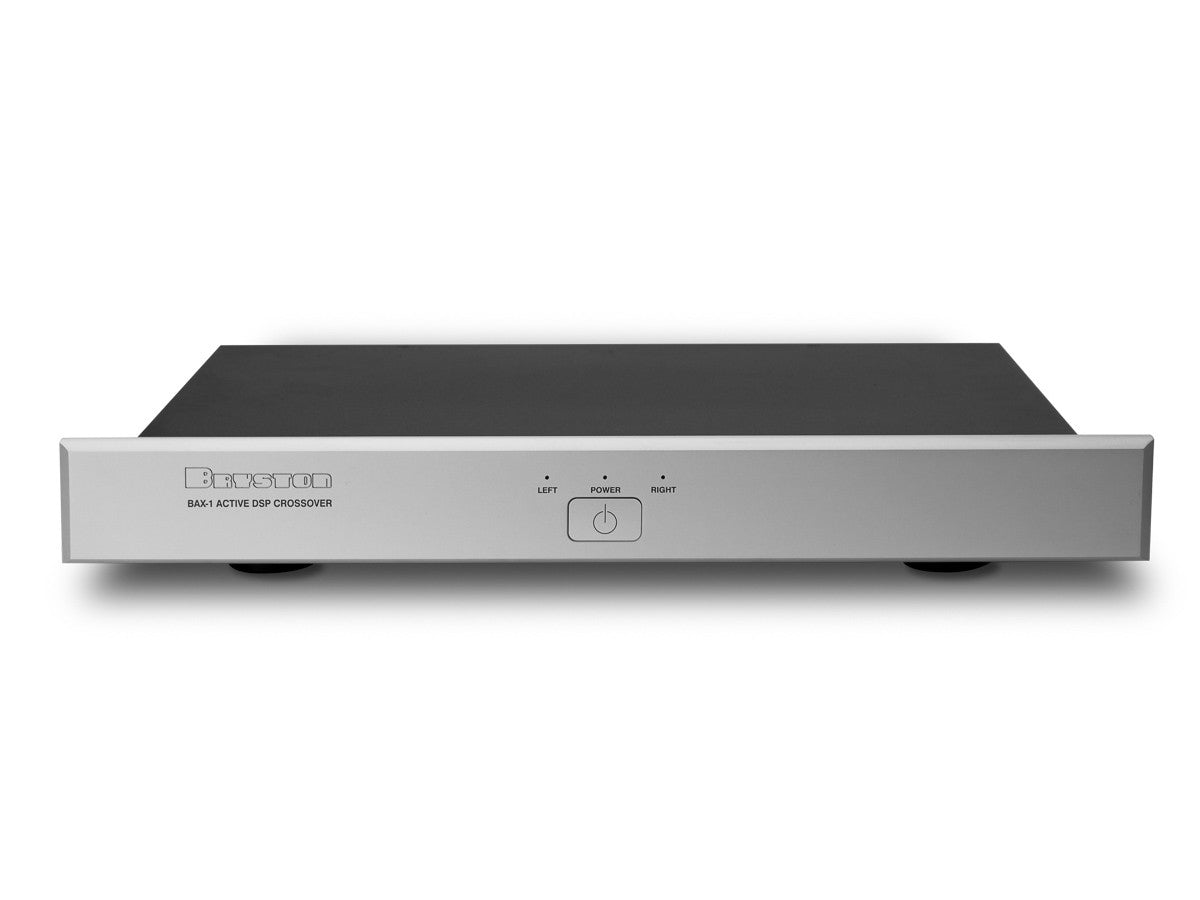

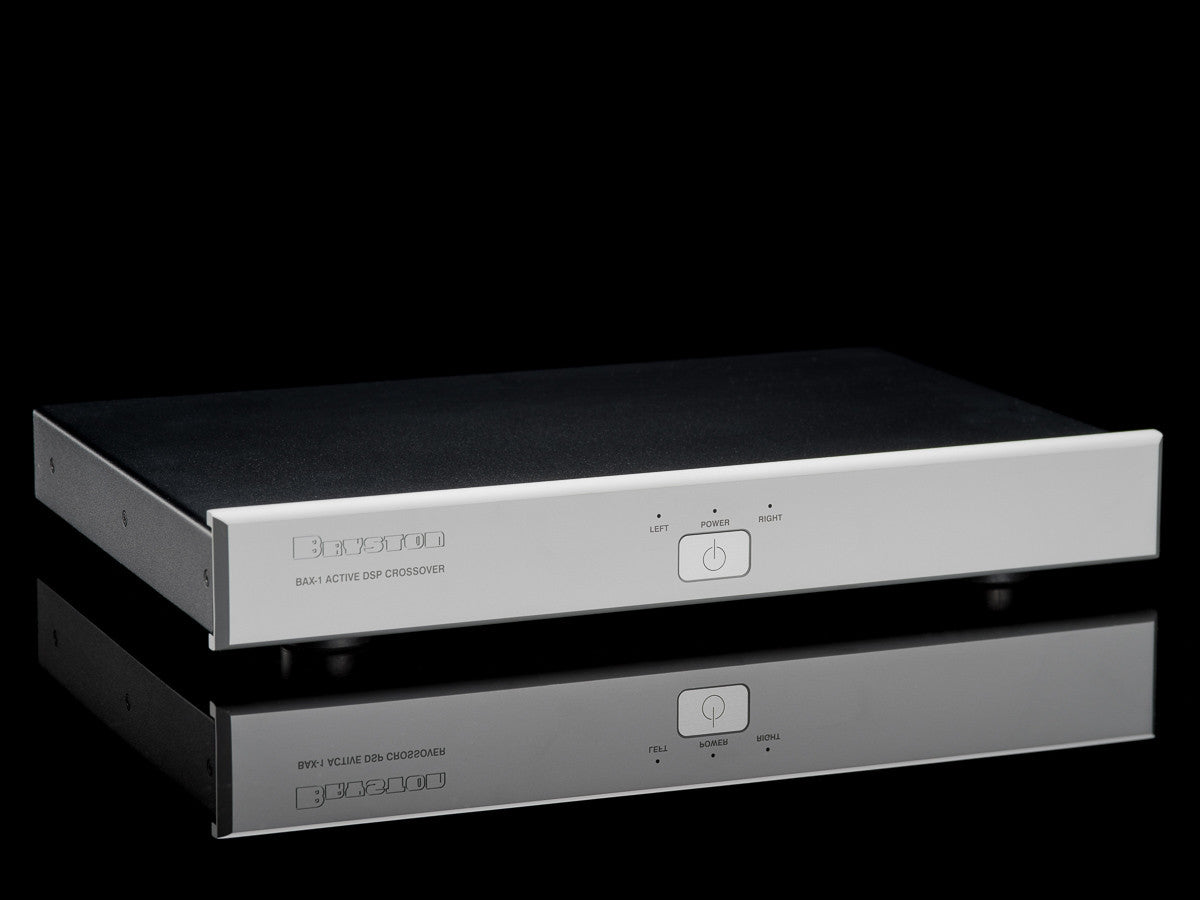

$3,995.00 USDThe BAX-1 is Bryston's state-of-the-art digital crossover, specially programmed for full compatibility with their loudspeaker models, making it an ideal fit for your Bryston active system. The BAX-1 features two channels of analog-to-digital conversion, transforming full-range analog audio from your preamplifier into an equivalent digital signal (sampled at 96kHz and decimated to 24 bits). This signal is processed by a high-powered DSP core, performing the 3-way crossover function for each channel and applying user-selected filters to adjust the bass response. Six bands of audio (three per channel) are converted back to analog by six digital-to-analog converters, which then feed six amplifier channels (three per loudspeaker) via six balanced analog outputs.
The Bryston Fully Active Loudspeaker Systems eliminate the passive crossovers found in conventional loudspeakers by placing the crossovers before the amplifier. This design offers increased flexibility in filter shapes, fine-grained adjustments for improved on- and off-axis response, direct coupling of the loudspeaker to the driver to avoid passive crossover losses, and higher SPL with lower distortion.
Combining decades of Bryston's research in acoustics, electronics, amplification, and state-of-the-art components, this fully active loudspeaker system recreates recordings with stunning realism. A well-designed active loudspeaker system can bring higher resolution and dynamic control to your audio setup, and the Bryston Active Loudspeaker System elevates audio performance to the next level.
Dragon Cable Recommendation: We recommend pairing the Bryston BAX-1 Digital Crossover with the Silver Dragon Interconnect. Sold in Pairs, the Silver Dragon V2 is our top-of-the-line silver conductor-based interconnect. With a braided geometry and amazing shielding, this interconnect is a remarkable solution where noise isolation is key. Get the best cables for your best audio gear.
About Bryston Amps and Speakers:
Bryston is a leading manufacturer of high-performance audio equipment based in Ontario, Canada, renowned for its powerful and accurate amplifiers and speakers that deliver stunning sound quality. They have been designing and manufacturing state-of-the-art electronics for consumer and audio professional markets for more than 50 years. Since the debut of its first amplifier in 1973, Bryston has grown its product line to encompass a range of world-renowned Amplifiers, Loudspeakers, and Digital Audio Components. Each of Bryston's hand-assembled products is extensively tested before shipment. From their state-of-the-art solid-state amplifiers to innovative products like the Bryston 4B, BDA-3.14, BDP series, Cubed series, and the legendary Bryston 20, their amplifiers, phono preamplifiers, conditioners, and stereo power amplifiers are engineered to extract every nuance from audio sources, revealing details and dynamics that other amplifiers struggle to reproduce. Bryston's extensive lineup of amplifiers spans from compact powerhouses to massively powerful monoblock amplifiers designed to drive the most demanding speakers and subwoofers. Their amplifiers are revered for their ability to deliver a stunningly realistic and immersive soundstage with thunderous dynamics and jaw-dropping accuracy.
From their state-of-the-art solid-state power amps and headphone amplifiers (BHA-1) to innovative products like the Bryston 4B, BDA-3.14, Cubed series, and the legendary Bryston 20, their amplifiers, phono preamplifiers, conditioners, and stereo power amplifiers are engineered to extract every nuance from audio sources, revealing details and dynamics that other amplifiers struggle to reproduce. Bryston's extensive lineup of amplifiers spans from compact powerhouses to massively powerful monoblock amplifiers designed to drive the most demanding speakers and subwoofers. Their amplifiers are revered for their ability to deliver a stunningly realistic and immersive soundstage with thunderous dynamics and jaw-dropping accuracy.
Beyond just sheer power, Bryston's amplifiers (like the Bryston BP series and the Bryston 3B) are engineered with meticulous attention to detail, incorporating cutting-edge technologies and innovative features that elevate audio quality and performance to new heights. From warm, natural soundstages to precise imaging and crystal-clear clarity, Bryston amplifiers provide an unparalleled listening experience. Bryston's flagship amplifiers, like the mighty 28XO, showcase the company's dedication to crafting products that push the boundaries of audio fidelity. These behemoths are purpose-built to unleash the full potential of high-resolution audio sources, unveiling every intricate detail and nuance with uncompromising accuracy and transparency.
Bryston's top-of-the-line amps and speakers stand as titans of the audio world, delivering ground-shaking power and dynamics that transcend the capabilities of traditional amps and speakers. From studio-grade recordings to heart-pounding cinematic scores, these titans lay bare the true depth and intensity of source material, unveiling details and dynamics that lesser amplifiers would fail to reproduce. Whether concert-level bass and ponderous lows, or staggering transients and searing crescendos, Bryston redefines the limits of what is possible, delivering performance, power, and dynamics that push the boundaries of amplification and loudspeaker tech while defining new standards for what can be achieved. The perfect addition to your high-end DAC, preamp, bookshelf speakers (like the Mini A and Mini T), Bryston loudspeakers, headphone amplifiers, preamps, and more are perfect for any audiophile setup.
Bryston offers an incredible 20-year warranty on its analog audio products and loudspeakers (five years on digital products and cables). Based in Peterborough, Ontario, Canada, Bryston products are sold through over 150 dealers in North America and 60 countries worldwide. Discover why Bryston is one of the most venerated high-end audio brands in the world and learn more about the products.
Features
- 6 DACs and 2 ADCs by AKM
- 96kHz/24bit DAC
- Factory programmed crossover settings
- Audio sensing auto-power on
- Network connectivity for control and firmware updates
- Balanced XLR input and output
- Three position gain switch
What's in the Box?
- BAX-1 Digital Crossover
- Power Cable
- 5-Year Limited Warranty*
*Only Bryston products purchased from an authorized dealer, like Moon Audio, are covered under warranty.
Bryston Digital products and cables are warranted for five (5) years from the original date of manufacture. The warranty includes parts and labor.
Bryston will remedy the problem by repair or replacement, as they deem necessary, to restore the product to full performance. Bryston will pay return shipping costs for the full length of the specific product’s warranty.
Specifications
- 6 DACs and 2 ADCs by AKM
- 96kHz/24bit DAC
- Factory programmed crossover settings
- Audio sensing auto-power on
- Network connectivity for control and firmware updates
- Balanced XLR input and output
- Three position gain switch
Physical
- 2.75” H x 11.11” D (17" or 19" Width Faceplate)
- 7cm H x 28.2cm D (43.2cm or 48.3cm Width Faceplate)
- 10.3 lb/4.7 kg
Options
- Available with silver or black faceplate
- 17” or 19” faceplate available

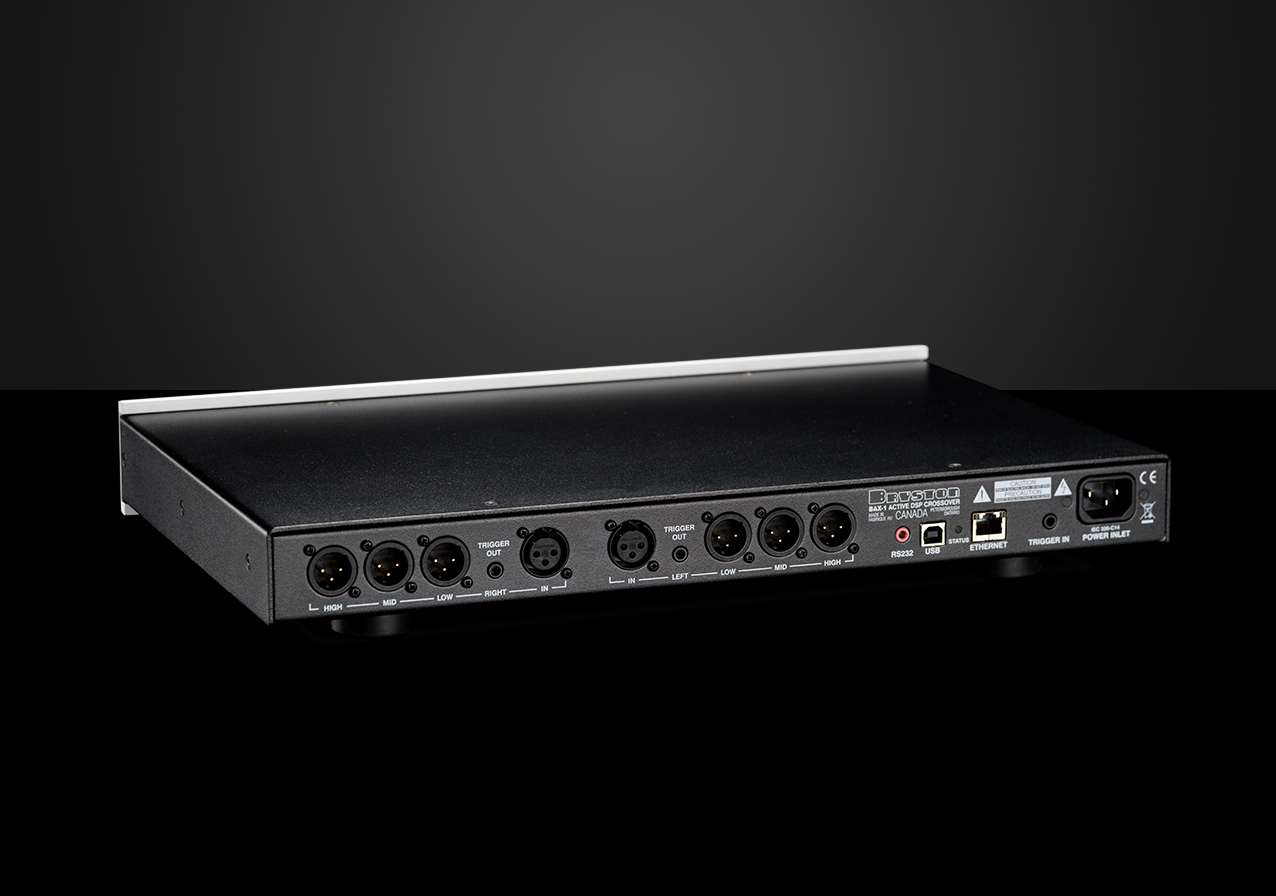

- Inputs: 2x XLR
- Outputs: 6x XLR (2x Low, 2x Mid, 2x High)
- Control: TCP/IP, IR, DC, RS-232
- Dimensions: 2.75” H x 11.11” D (17" or 19" Width Faceplate)
- Weight: 10.3 lb/4.7 kg
Package Includes
- Amplifier
- 5-Year Limited Warranty*
*Only Bryston products purchased from an authorized dealer, like Moon Audio, are covered under warranty.
Bryston Digital products and cables are warranted for five (5) years from the original date of manufacture. The warranty includes parts and labor.
Bryston will remedy the problem by repair or replacement, as they deem necessary, to restore the product to full performance. Bryston will pay return shipping costs for the full length of the specific product’s warranty.
For further details, visit Bryston's website.
