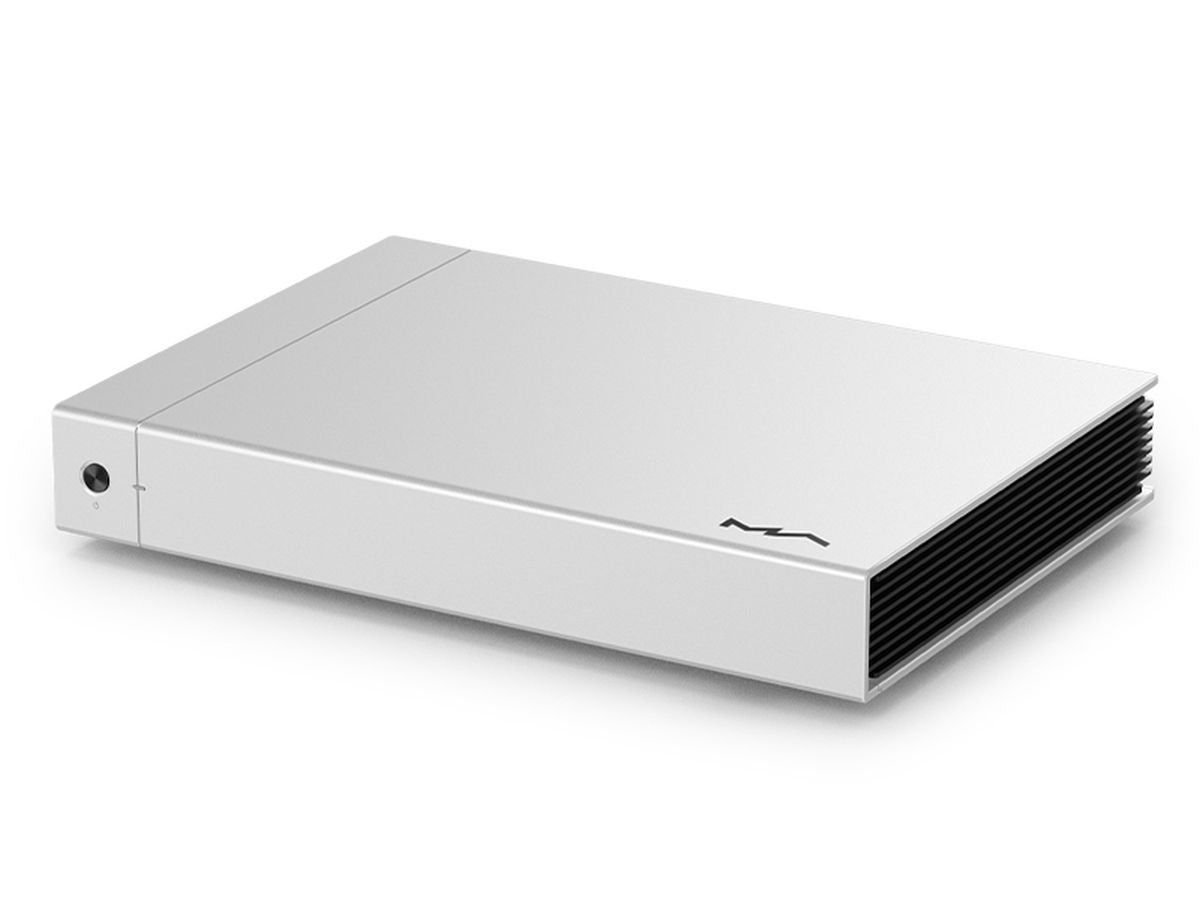

![Matrix Audio Element P2 Audio Power Amplifier Front](http://www.moon-audio.com/cdn/shop/files/Matrix_Audio_Element_P2_Front_2__85307.1684785939.1280.1280.jpg?v=1719255009&width=1200)

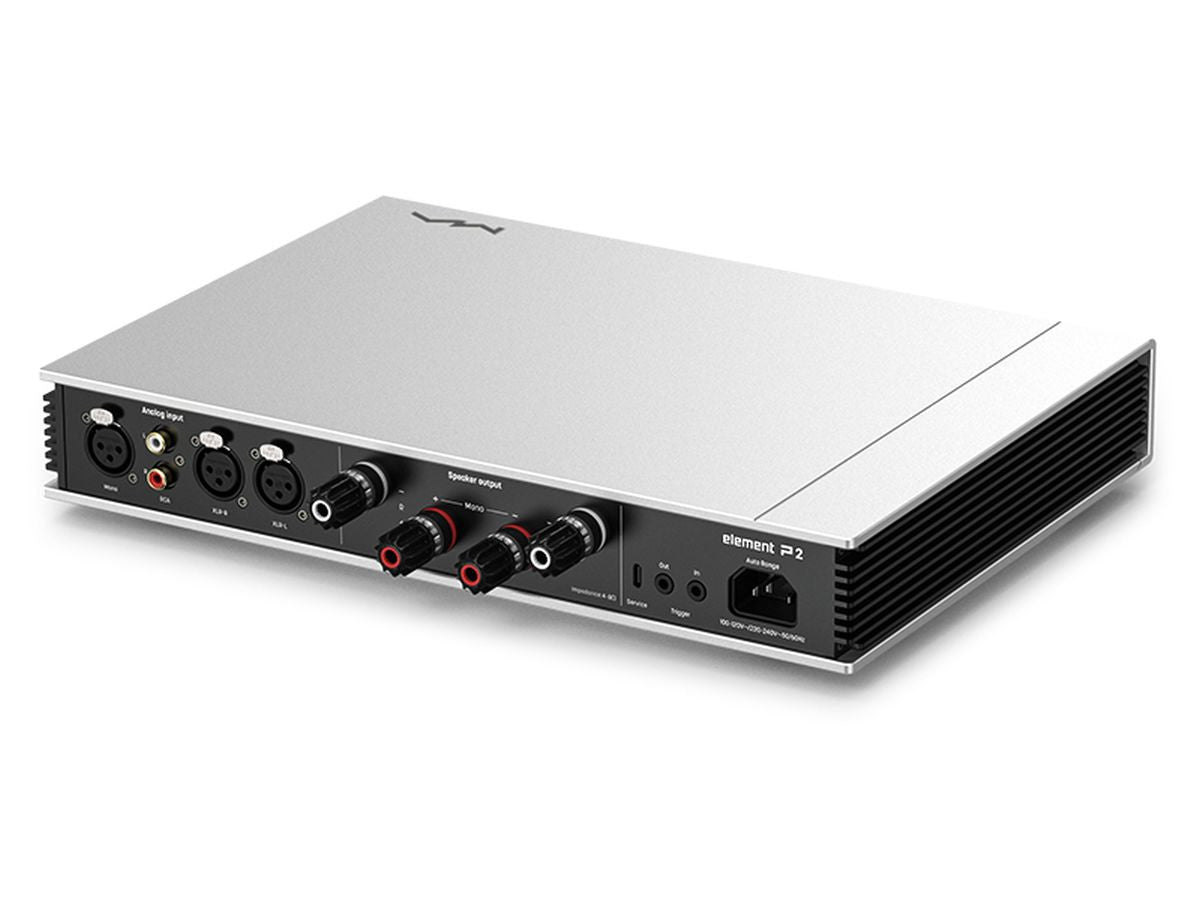

![Matrix Audio Element P2 Audio Power Amplifier Rear](http://www.moon-audio.com/cdn/shop/files/Matrix_Audio_Element_P2_Rear_1__99625.1684785939.1280.1280.jpg?v=1719255010&width=1200)
Matrix Audio
Element P2 Audio Power Amplifier
$1,580.00 USD![Matrix Audio Element P2 Audio Power Amplifier Front](http://www.moon-audio.com/cdn/shop/files/Matrix_Audio_Element_P2_Front_2__85307.1684785939.1280.1280.jpg?v=1719255009&width=1200)
Features
Flexible input options with RCA and XLR input ports
Powerful stereo output with 230W per channel at 4 ohms load
Mono mode configuration for 850W output power per channel at 4 ohms load
Smart trigger control for seamless transitions between modes
High-quality WBT-0703 Cu pole terminals for reliable connections
CBVB pads to minimize mechanical vibration noise
What's in the Box?
Warranty
Introducing the new Element series power amplifier - giving you all the styling, power, and inputs you'll need for any setup. It makes the perfect companion for any Element series music streamer, working perfectly in conjunction with any music streamer from Matrix Audio. The Element P2 provides 230W output power to each channel at 4 ohms load and drives bookshelf speakers or small floor-standing speakers effortlessly. The chassis design also matches the rest of the Element series product line, giving you the perfect aesthetic for any setup, but especially for existing Element streamer owners.
Dragon Cable Recommendation: The Silver Dragon Interconnect is one of our best-selling cables at Moon Audio and our top recommendation to pair with the Element P2 from Matrix Audio. Sold in Pairs, the Silver Dragon V2 is our top-of-the-line silver conductor based interconnect. With a braided geometry and amazing shielding, this interconnect is a remarkable solution where noise isolation is key.
A Power Amp for Any System
Continuing with the element series family design language, the element P2 power amplifier inherits the same simple and modern design. The Element P2 is designed with Class-D amplification technology and provides plenty of power to various bookshelf speakers or floor standing speakers. Let your entire audio system perform better than ever.
Similar Design, Inside and Out
The appearance of the Element P2 matches with the element product line from Matrix, which looks elegant at every angle. It integrates with your home furniture organically. Audio equipment is no longer a cold and heartless block, with an element P2, it is so easy to build an ideal sound system with both perfect sound and beautiful looks.
Multiple Input Methods
It's essential to have flexible input methods for any excellent power amplifier. The Element P2 is equipped with both RCA and XLR input ports. No matter what front-end device you use with balanced or single-ended outputs, the Element P2 delivers the original signal of music to the amplifier authentically and accurately.
Stereo mode
In stereo mode, the the Element P2 provides 230W output power to each channel at 4 ohms load, drives bookshelf speakers or small floor-standing speakers effortlessly. The sound will take you to the real stage, keep every detail of the music, and fully interpret the meaning of Hi-Fi.
Double Element p2's, Double power In mono mode
When two Element P2s are configured in mono mode, each amplifier powers one speaker, and you'll get 850W output power from each channel at 4 ohms load. Unleash the full potential of your speaker system, even with low-sensitivity floor-standing speakers.
Trigger When Paired to a Front-End Device
When the Element P2 is connected to a front-end device which has trigger ports, the unit will enter working status immediately from standby mode without manual operations.
Brilliant Connectors from WBT
With the newly added "moment of force indicator" to the hand-tightened part of WBT-0708 Cu, the pole terminals and the spades of speaker wires are protected effectively. The terminal uses a hollow design, and the conductors are gold-plated on pure copper and anti-oxidation treated. This helps to effortlessly achieve a low impedance connection with high reliability, and easily cope with instantaneous high current. The Element P2 is always ready to provide sufficient power for magnificent music.
Ceramic Ball Vibration Buffer
The element P2 is equipped with CBVB pads. The core of CBVB is made of ceramic balls and silicone rubber. There are 6 ceramic balls in each pad to minimize the noises caused by mechanical vibration. The transparency of the sound is further improved, creating a wide and clear sound stage for you.
Technical Features
- Stereo mode RCA input
- Input impedance: 47kΩ Gain 28dB@1kHz
- Stereo mode XLR input
- Input impedance: 47kΩ Gain 34dB@1kHz
- Mono mode XLE input
- Input impedance: 47kΩ Gain 34dB@1kHz
- Stereo mode
- Output power: 2 x 230W @ 1% THD+N, 20Hz - 20kHz, 4Ω
- 2 x 110W @ 1% THD+N. 20Hz - 20Hz, 8Ω
- DNR: 112dB A-weighting
- Frequency Response: 20Hz-20kHz ±0.3dB
- THD+N = 0.008% @ 1W
- Output impedance: <25mΩ
- Mono Mode
- Output power: 500W @ 1% THD+N, 20Hz - 20kHz, 8Ω
- 850W @ 1% THD+N. 20Hz - 20Hz, 4Ω
- DNR: 112dB A-weighting
- Frequency Response: 20Hz-20kHz ±0.3dB
- THD+N = 0.004% @ 1W
- Output impedance: <30mΩ
- Trigger
- Trigger in DC 6-12V<10mA
- Trigger out DC 12V/50mA MAX
- Power Voltage
- AC 100V-120V 50/60Hz / AC 220V-240V 50/60Hz
Analog Input
Speaker Output
- Stand-by Power Consumption
- <5W
- Maximum Power Consumption
- <1200W
- Dimension
- 259×340×58mm (L×W×H, including protruding parts)
- Weight
- 3.7kg (8.16 pounds)
- Accessories
- Power cable
Quick start guide
Warranty card
Warranty Information
- *Matrix provides the return service and bare the shipping cost, if the product is defective due to non-human factors within 7 days from the date of purchase.
- Matrix provides free replacement and bare the shipping cost, if the product is defective due to non-human factors within 30 days from the date of purchase.
- Matrix provides free-repair service and bears the shipping cost within 1 year from the date of purchase.
- Matrix will continue to provide free-repair service after purchasing for more than one year, customers only need to bear the cost of parts and the shipping costs.
- The cables, accessories and gifts in the products are not covered by the warranty.
- Damage to the product due to incorrect power supply, or due to modifications to the circuit or components, or purchases from unauthorized dealers will not be eligible for a free lifetime warranty service.
