Onix
Overture XM5 Music Player DAP
$739.00 USDFeatures
Flagship ES9039S Pro DAC Chipset.
ONIX Operating System.
3rd Gen XMOS XU316 USB Processor.
Supports PCM 32-Bit/768kHz and DSD512 Audio Signals.
In-House Developed FPGA Architecture.
Dual TPA6120 Amplifier Section.
Three-Level Gain Adjustment.
Powerful Output Thrust(Up to 1070mW@32Ω).
3” OLED Display Touch Screen.
Physical Media Control Buttons.
CNC Machined Aluminum Alloy Body.
3.5mm+4.4mm Dual Headphone Output.
WiFi Connectivity For DLNA, Apple AirPlay and Online Tidal Streaming.
Two-Way Bluetooth V5.2 Connectivity.
Supports Hi-Res Codecs including LDAC, AptX HD, AptX, SBC, AAC.
7000mAh High-Capacity Battery.
Up to 14 Hours Battery Life.
Warranty

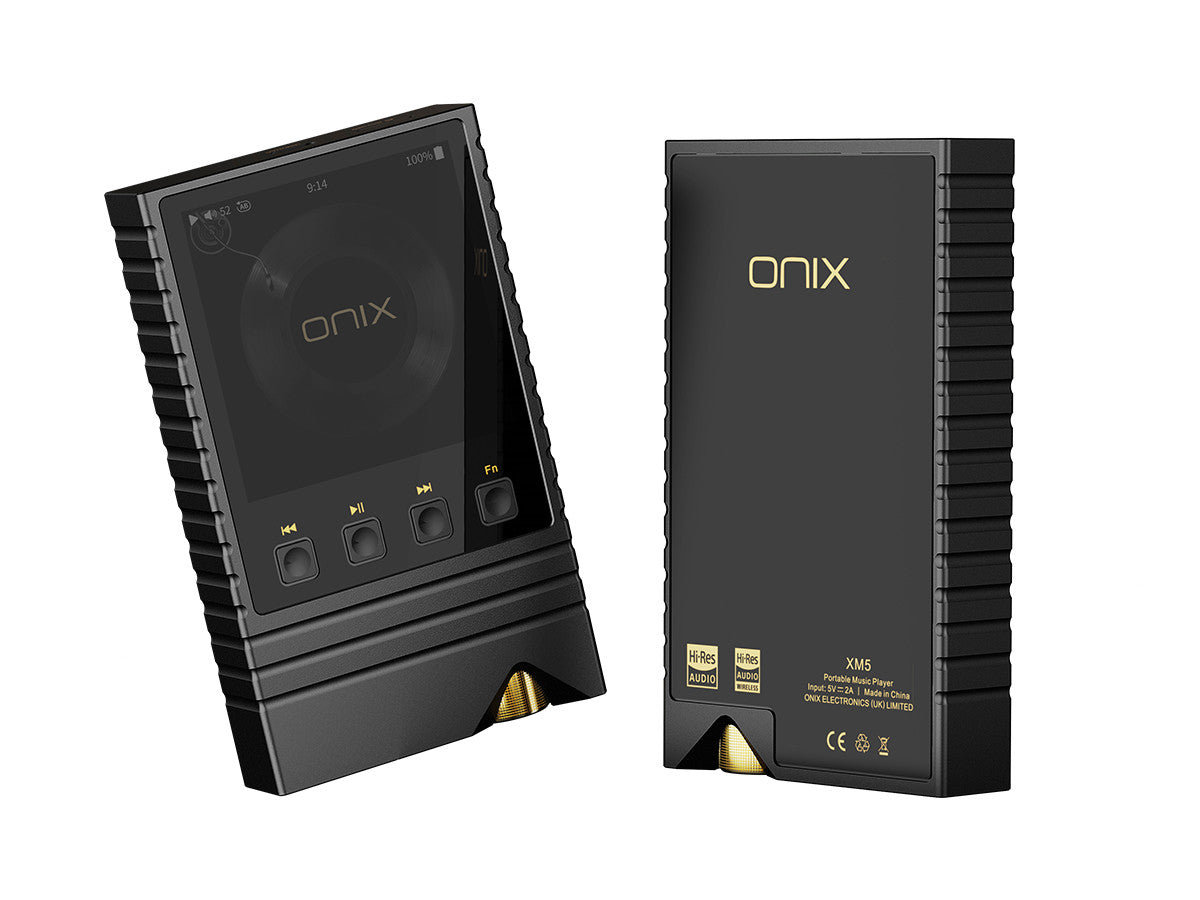

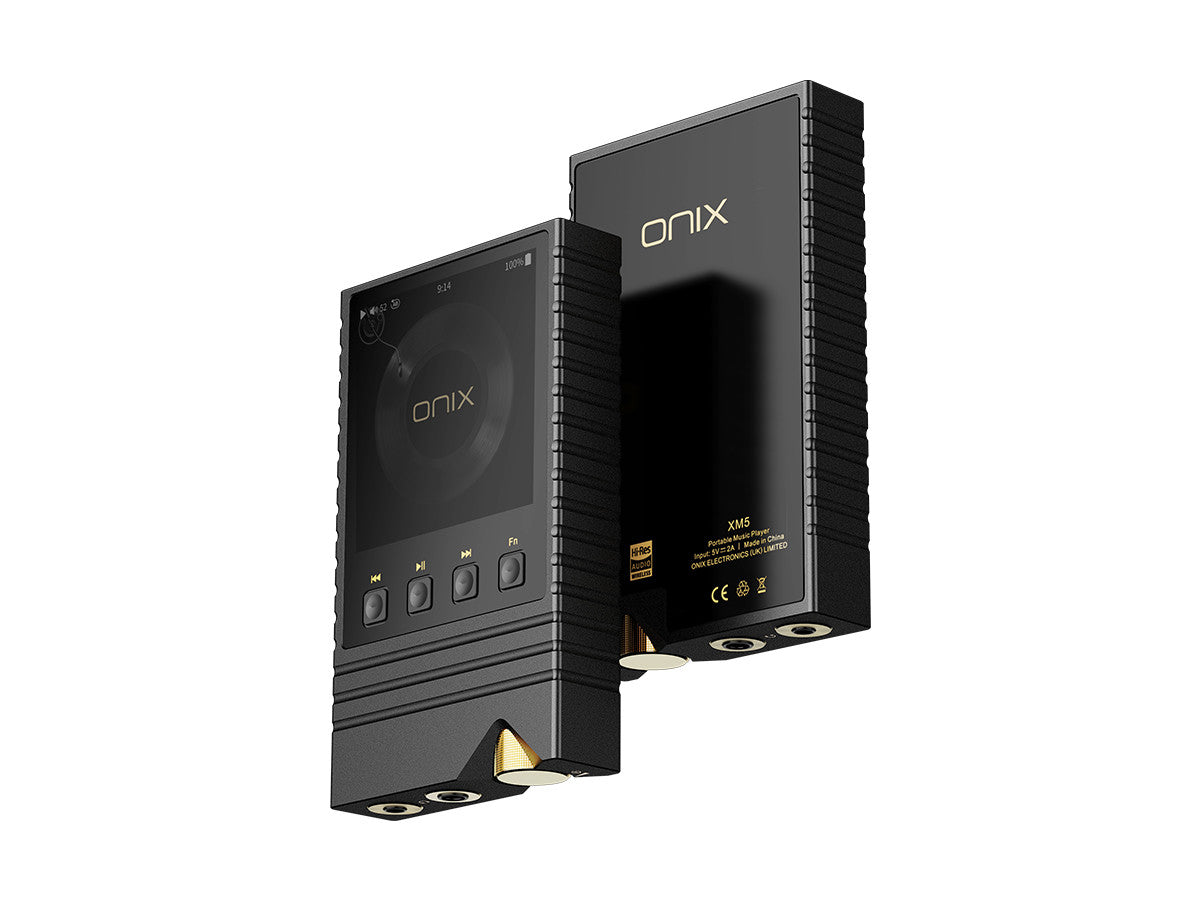

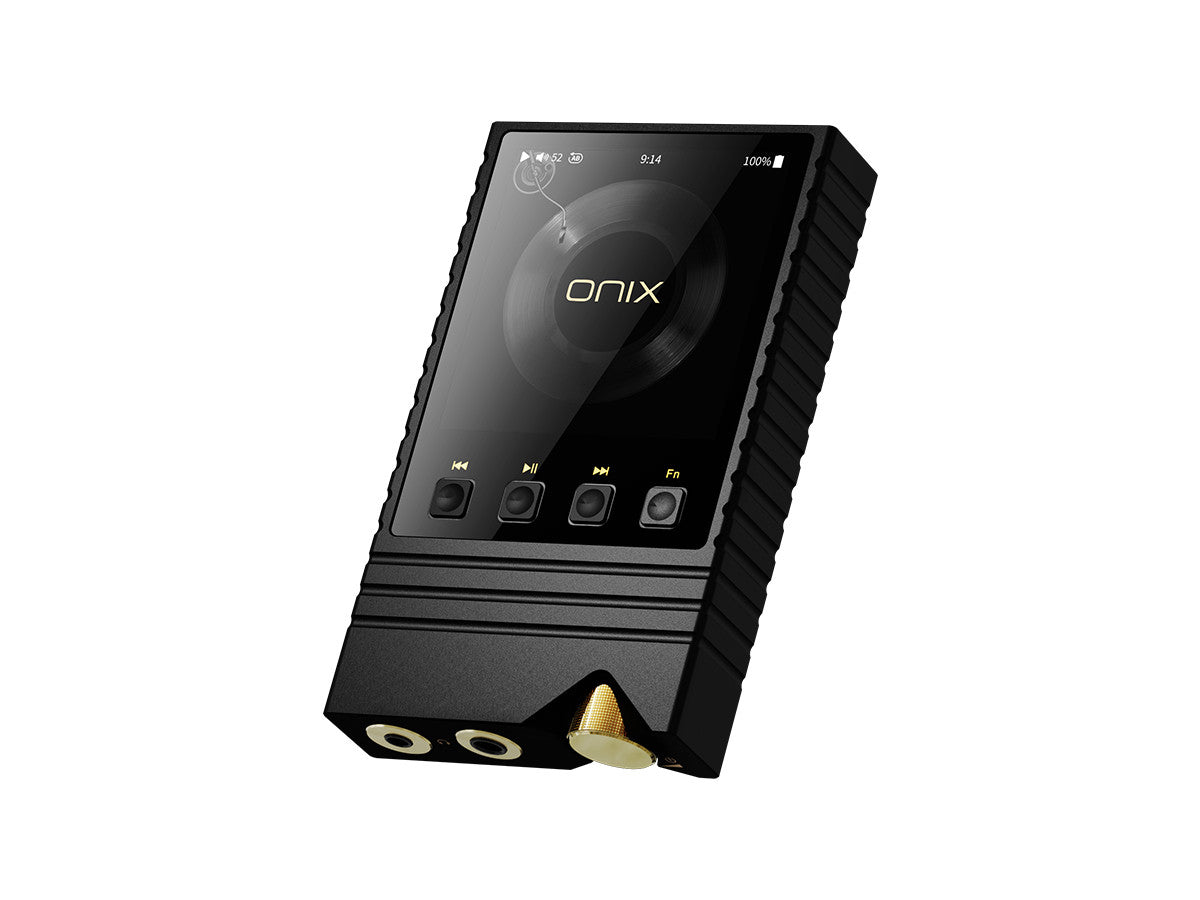

Unmistakable ONIX Design
Classic ONIX look modernized for today, Overture fits perfectly alongside Miracle and Mystic. Main body crafted by CNC machines from high-grade aluminium, providing the perfect construction that’s strong and beautiful, especially when paired with the gold-plated volume wheel.
High-End Audio Configuration
Inspired by the audio design of the ONIX Miracle stack, Overture brings the sound of the flagship ESS ES9039PRO DAC to a portable world. Highly detailed, overflowing with dynamics and energy, while bringing husky and smooth voices. Paired with two TPA6120A2 amplifiers for exceptional power from a portable device, offering over 1W @ 32 Ohm.
Pure Music System
Simple and fast system, powered by the Ingenic X2000 platform and designed for the most demanding audiophiles. Avoiding the distractions of modern smartphones and just offering the core music experience. Playing Hi-Res files from MicroSD card, streaming with Tidal or running over DLNA/Airplay, uninterrupted High Fidelity sound is guaranteed.
Multifunctional Hi-Fi Component
While designed mainly as a portable player for headphone users, ONIX XM5 will easily fit into many roles in your home, office or dedicated Hi-Fi rig. Simply streaming Youtube from your phone over Bluetooth, serving as the ultimate USB DAC/Amp with your work laptop, offering digital out for standalone USB DACs or acting as an independent DAC for your powerful monoblock amplifiers, Audiophiles will always find new ways how to utilize the XM5 to its fullest potential.
Specifications
- Dimensions
- 115 x 70 x 19 mm
- Weight
- 275g
- System Platform
- Ingenic X2000
- System
- In-House Developed
- Display
- Square 3-inch OLED Touch Screen 720p
- Playback
- MicroSD Card (up to 2TB), Tidal Online Streaming
- Controls
- Touch Screen, 4 Hardware Buttons, Volume Wheel
- Remote Controls
- SyncLink through Eddict Player app (Android & iOS)
- Bluetooth Connectivity
- Two-Way Bluetooth 5.2
- Bluetooth Codec Support
- LDAC / aptX HD / aptX / SBC / AAC
- Wi-Fi Connectivity
- 2.4G/5G, DLNA, AirPlay, Tidal
- USB DAC
- Dedicated XMOS XU316 Chip
- Hi-Res File Support
- PCM 768kHz / 32bit, DSD512
- Headphone Outputs
- 3.5mm Single-Ended, 4.4mm Balanced
- Battery
- 7000 mAh, standard USB-C charging port
- Battery life
- Up to 14 hours SE, 12 hours BAL
- 3.5mm Single-Ended Output
- Output Power Low gain
- 0.79V@32Ω (19mW@32Ω) (THD+N<0.002%)
- Output Power High gain
- 3.15V@32Ω (310mW@32Ω) (THD+N<1%)
- 3.65V@300Ω (40mW@300Ω) (THD+N<0.02%)
- Output Impedance
- 4.7Ω
- 4.4mm Balanced Output
- Output Power Low gain
- 1.5V@32Ω (75mW@32Ω) (THD+N<0.0008%)
- Output Power High gain
- 5.7V@32Ω (1069mW@32Ω) (THD+N<1%)
- 6.9V@300Ω (158mW@300Ω) (THD+N<1%)
- Frequency Response
- 20Hz-40kHz (-0.5dB)
- THD+N
- 0.0006% @32Ω (A-Weight)
- Dynamic Range
- 121dB @32Ω (A-Weight)
- Channel Separation
- 100dB
- Signal-to-Noise Ratio
- 121dB @32Ω (A-Weight)
- Noise
- 109dB @32Ω (A-Weight)
- Output Impedance
- 6.6Ω
