Chord Electronics
Ultima Integrated Amplifier
$11,700.00 USDFeatures
Outputs: 1x stereo XLR
1x stereo balanced XLR AV bypass input
1 x 12 V trigger output/input
What's in the Box?
Warranty
Five years since the introduction of ULTIMA, Chord Electronics’ most accomplished amplifier topology in its history, founder/owner John Franks has trickled the technology down into a full-width integrated amplifier for the first time, setting new performance standards for single-box amplification.
The ULTIMA INTEGRATED is a class-leading 125-watt integrated amplifier benefitting from the latest dual-feed-forward error-correction topology, Chord Electronics’ legendary proprietary ultra-high-frequency power supplies, plus an unmistakable industrial aesthetic.
Designed by Chord Electronics’ founder, owner and chief engineer, John Franks, the advanced ULTIMA circuit monitors and immediately corrects audio signals before the output stage, for astonishing signal accuracy from a one-box integrated device.
The ULTIMA INTEGRATED also takes advantage of the very latest developments in advanced low-distortion power supplies – devices offering exceptionally low noise and outstanding amplifier operation – for even greater fidelity.
A four-input design, one fully balanced and three unbalanced, all enjoy individual buffering and are selectively filtered against potential ingress from radio frequency interference; selection switching is via microprocessor-controlled sealed relays.
The ULTIMA INTEGRATED is the first new Chord Electronics integrated amplifier for seven years and remains the sole full-width integrated model in the range.

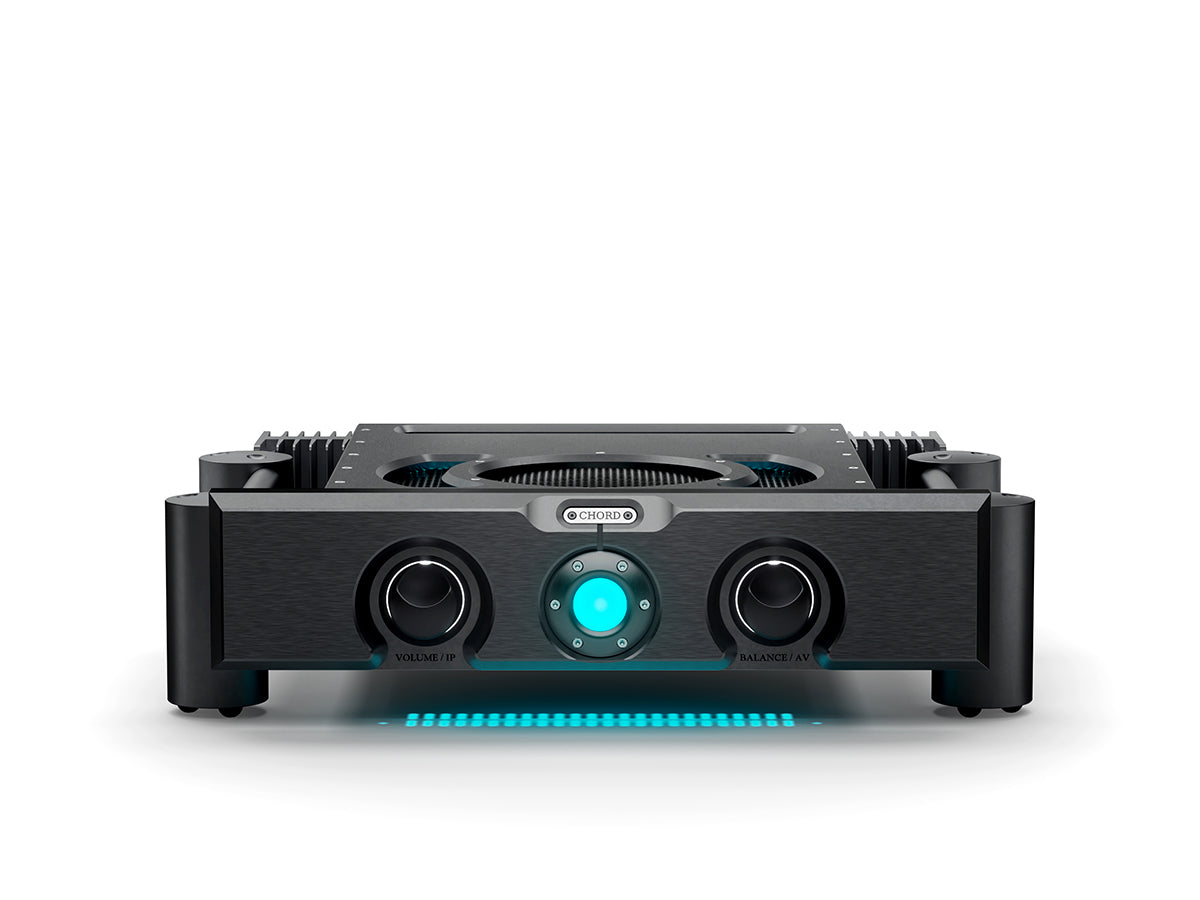

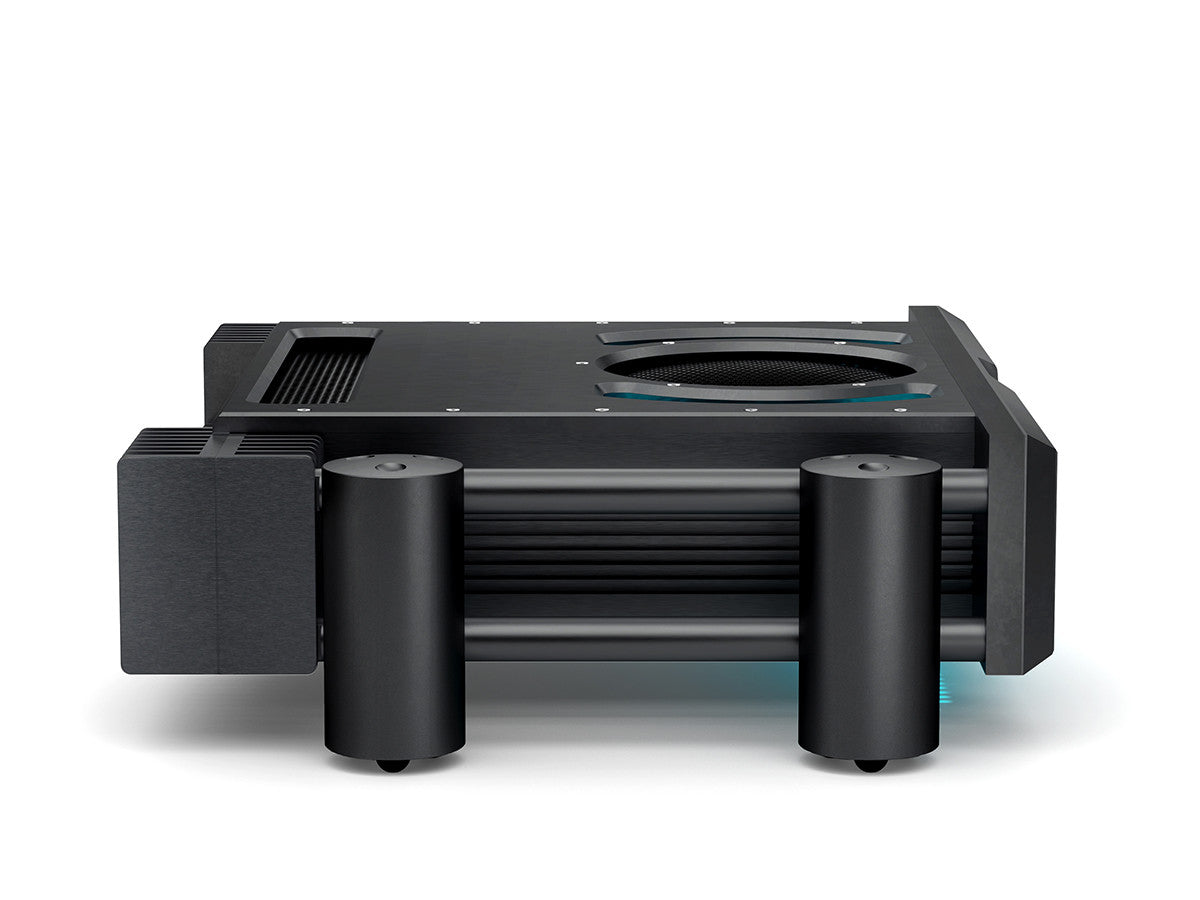

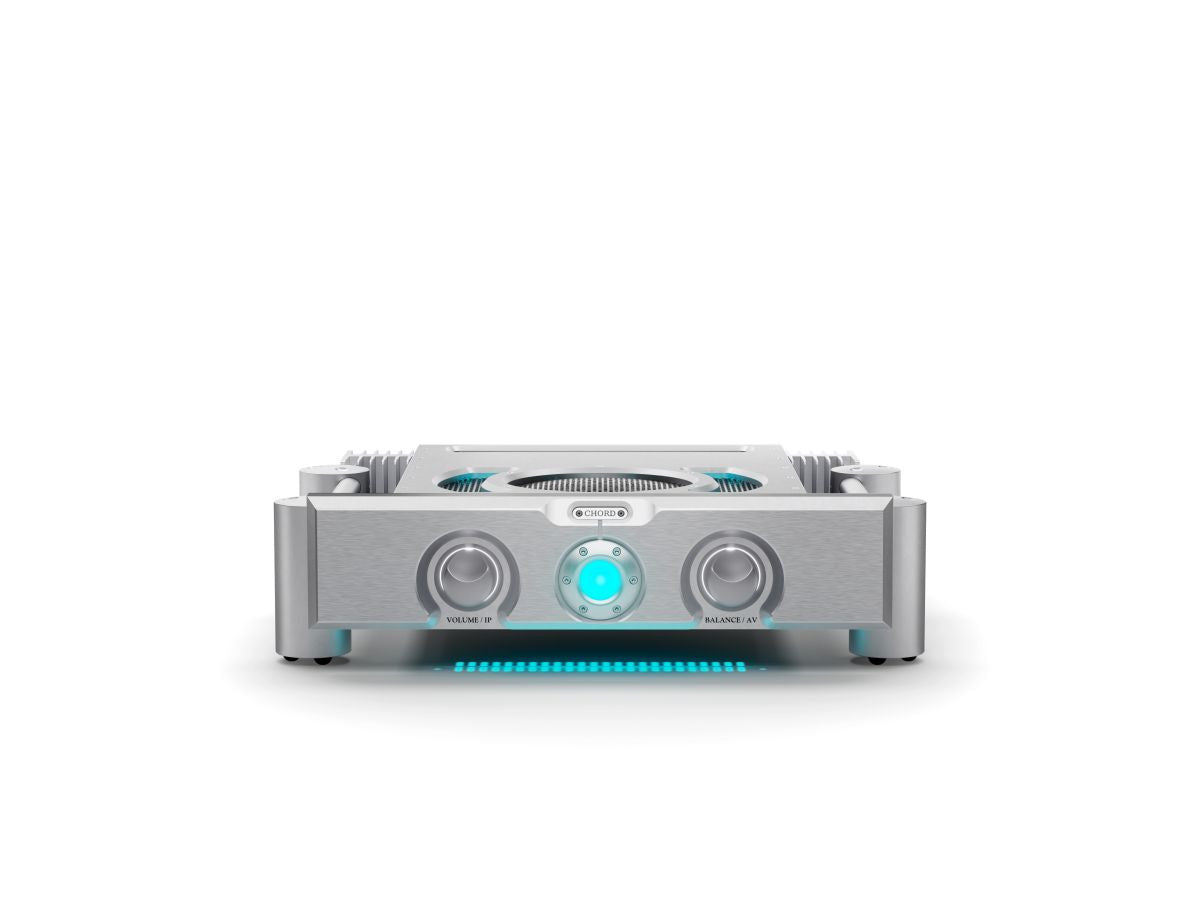

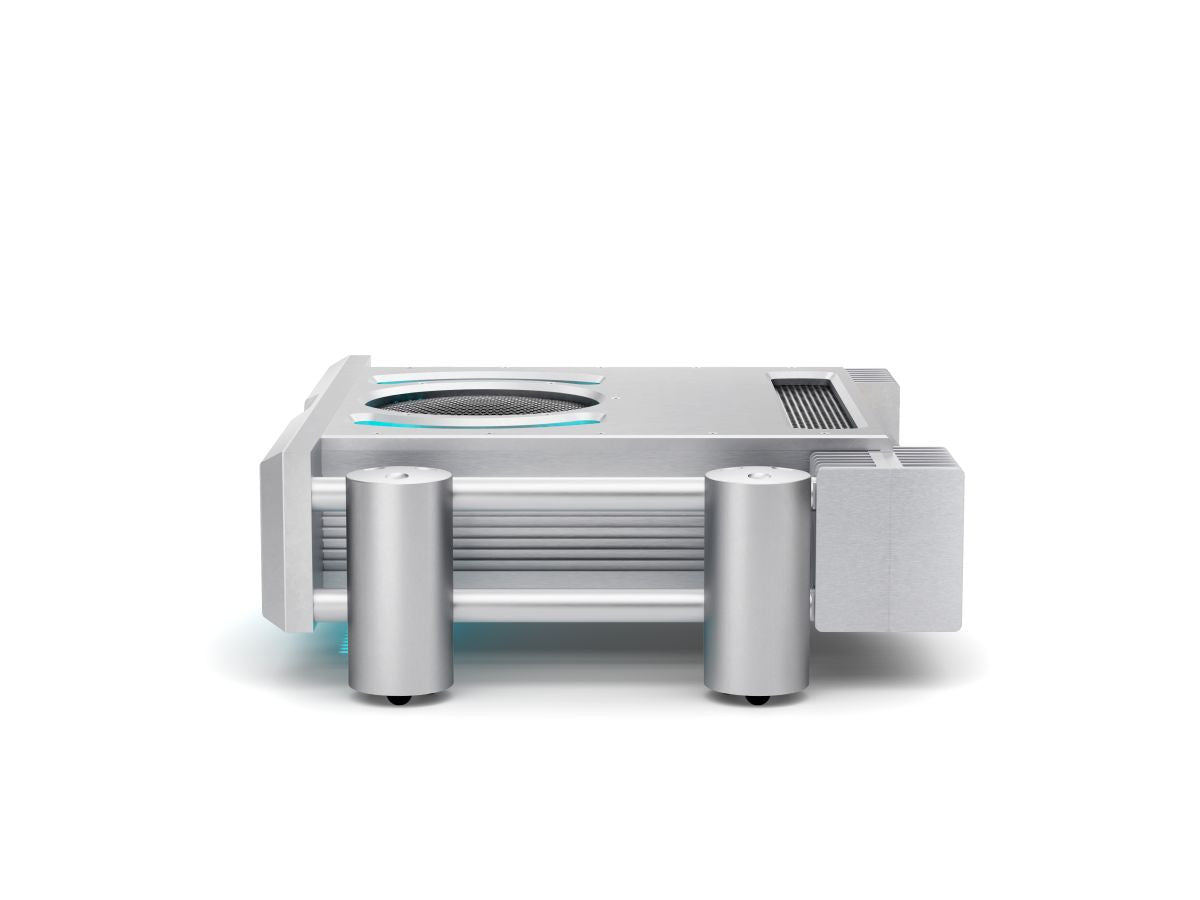

All metalwork is precision-machined from solid aircraft-grade aluminium, including Chord Electronics’ iconic Integra Legs. The fascia sports a 28-mm-thick front panel with a perfectly symmetrical aesthetic, centered around a spherical power on/off control with polychromatic lighting, flanked by illuminated volume and balance controls.
ULTIMA INTEGRATED is available to pre-order now (expected September)
INCLUDED ACCESSORIES
- ULTIMA INTEGRATED Quickstart guide
- Safety instructions
- 10A Mains IEC cable
- IR system remote control
- 2x AAA batteries
Features

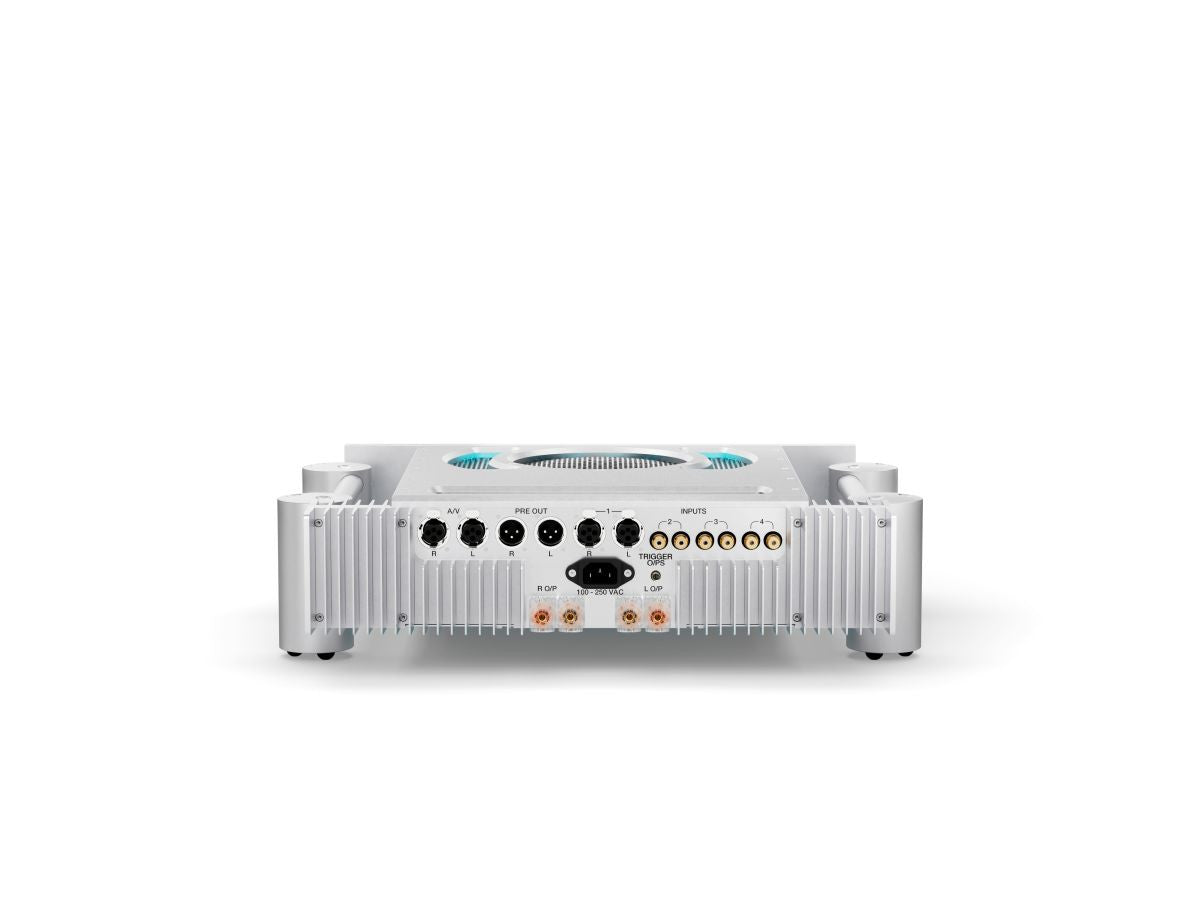

- Inputs: 1x stereo balanced XLR inputs, 3x stereo unbalanced RCA
- Outputs: 1x stereo XLR
- 1x stereo balanced XLR AV bypass input
- 1 x 12 V trigger output/input
Technical Specs
- Frequency response:
- 10 Hz-200 kHz +/- 3 dB
- THD:
- 0.01 % 20 Hz-20 kHz
- Signal-to-noise ratio:
- 90 dB on all inputs
- Input impedance:
- 100 kΩ
- Input maximum voltage:
- 3 V RMS
- Output maximum voltage:
- 35 V RMS
- Gain:
- 21 dB
- Channel separation:
- 100 dB
- Operation voltage:
- 80-250 V AC auto-switching
- Power output:
- 125 W into 8Ω
- Power consumption:
- 200 W
- Dimensions with included Integra legs:
- 13 cm(H) x 48 cm(W) x 38 cm(D)
- Dimensions with optional side blocks (cannot be stacked):
- 11 cm(H) x 43 cm(W) x 38 cm (D)
- Weight:
- 14.75 kg
